Fire sprinkler systems have been silent heroes for decades, working tirelessly in the background to safeguard our lives and properties from the devastating consequences of fires. Yet, despite their ubiquity in commercial buildings, schools, and increasingly in residential properties, these vital systems are often misunderstood, and their operation remains a mystery to many. How do they detect heat? Why doesn’t a burnt piece of toast set off the whole system? How do they manage to suppress fires so effectively?

If you’ve ever asked such questions, you’ve come to the right place. This blog post aims to demystify the inner workings of fire sprinkler systems, breaking down their essential components and mechanics and debunking some common misconceptions. By understanding how these systems work, we can better appreciate their significant role in our everyday safety and ensure they are appropriately maintained when needed. Let’s dive in.

The Basic Elements of Fire Sprinkler Systems

All fire sprinkler systems, regardless of type or design, comprise key components that detect and suppress fires collaboratively. At their core are the sprinkler heads, armed with a heat-sensitive element like a glass bulb or a metallic link. These elements react to specific temperatures, activating the sprinkler. These heads link through a pipe network, which carries the water or air used as a suppressant. The water source varies, from municipal lines to storage tanks or even natural water bodies. A control valve manages this supply, ensuring system readiness. Also, sprinkler systems often integrate with fire alarms, which alert occupants and notify the local fire department when activated. Understanding these fundamental components helps us appreciate the proficiency of these vital systems.

Types of Fire Sprinkler Systems

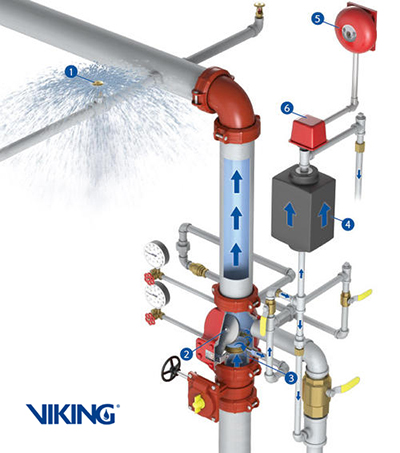

Wet Pipe Systems:

The wet pipe system is the simplest type. It constantly has pressurized water in the pipes. When a fire activates the sprinkler head’s heat-sensitive mechanism, water immediately releases onto the fire. Wet pipe systems are commonly used in non-freezing environments like residential buildings and offices.

Dry Pipe Systems:

Unlike the wet pipe system, dry pipe systems are filled with pressurized air or nitrogen, holding the water back at a central valve. When a fire triggers a sprinkler head, the air pressure drops, the main valve opens, and water flow into the pipes and out of the sprinklers. Dry pipe systems are beneficial in environments where the pipes could freeze, like unheated warehouses or parking garages.

Pre-action Systems:

Pre-action systems are hybrids that require two triggers to start water flow. Initially, they are dry systems. When the detection system senses smoke or heat, water is allowed into the piping (pre-action), but it doesn’t flow out unless a sprinkler head is activated. Pre-action systems are used in areas where accidental activation could cause significant damage, such as data centers or museums.

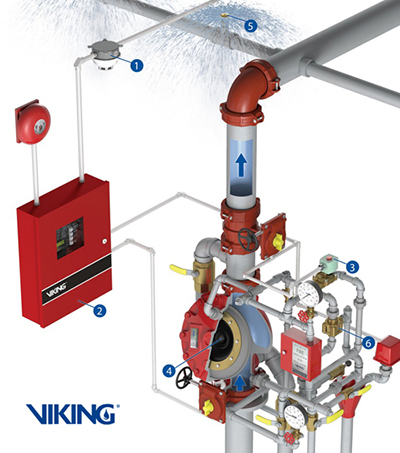

Deluge Systems:

Deluge systems are similar to wet pipe systems, but the sprinkler heads are open, and the pipe is not pressurized with air. When the fire detection system is triggered, a deluge valve releases the water, which flows from all sprinkler heads simultaneously. This system is ideal for high-hazard environments, such as chemical plants or aircraft hangars, where rapid fire spread is possible.

The Science Behind Fire Sprinkler Systems

Heat detection: how sprinklers are activated

Fire sprinklers are activated by heat detection mechanisms. Typically, a sprinkler head contains a heat-sensitive element, like a glass bulb filled with a glycerin-based liquid or a metallic link. Upon reaching a specific temperature, typically between 135-165 degrees Fahrenheit, the glass bulb bursts, or the link melts. This action releases the water or suppressant sealed within the sprinkler, allowing it to spray out and douse the fire. It’s important to note that each sprinkler operates independently, activating only when the temperature at that specific location reaches the activation point.

Water distribution: how water is dispersed to put out fires

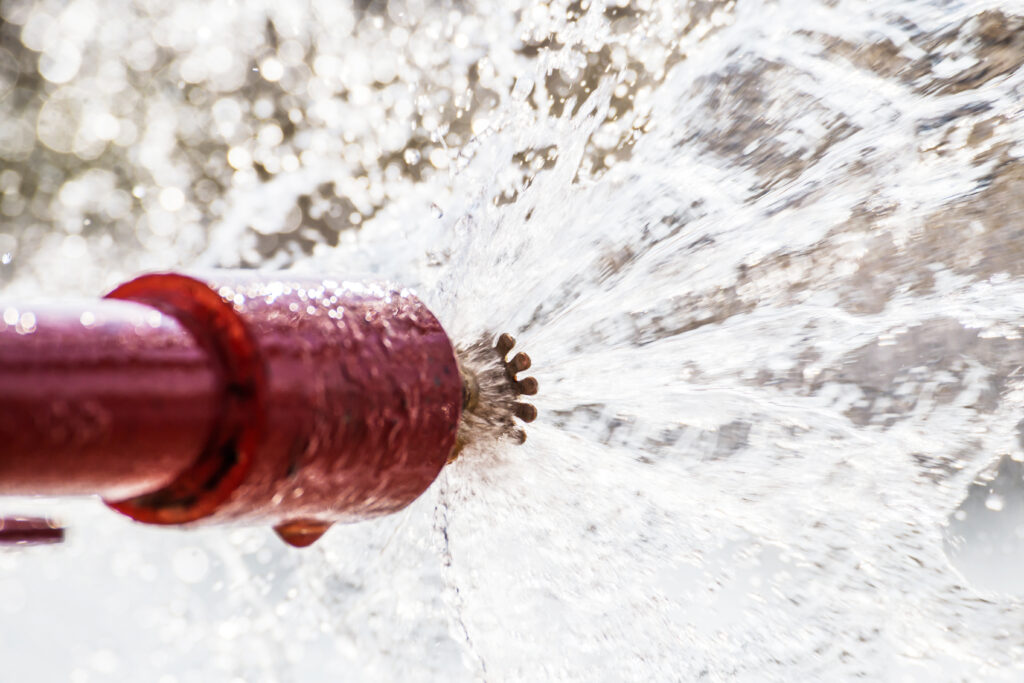

When the heat-sensitive element within a sprinkler head is triggered, the water is discharged following a predetermined pattern, contingent upon the specific sprinkler head type. The water pressure and design of the sprinkler head collaborate to generate a spray encompassing a vast expanse. This dispersion pattern aims to saturate the burning material, diminishing its temperature and thwarting the fire’s propagation. Wet pipe systems promptly release water upon activation, while dry pipe, pre-action, and deluge systems regulate the water release through valves.

Specific mechanics of different types of sprinkler heads

Sprinkler heads vary in design to suit specific needs. Traditional ‘pendent’ heads hang from the ceiling, releasing water in a circular pattern when triggered. ‘Upright’ heads sit atop pipes and spray water upwards, creating a dome-shaped dispersal. ‘Sidewall’ heads are mounted on walls, creating a half-circle spray pattern. ‘Concealed’ heads sit flush with the ceiling and are covered by a decorative plate. Each type has a heat-sensitive element, typically a glass bulb or a fusible link, that responds to a specific temperature by releasing the water or suppressant within the sprinkler head.

The Maintenance and Testing of Fire Sprinkler Systems

Routine checks

Routine checks, usually conducted yearly, should encompass a comprehensive assessment of the sprinkler heads, control valves, alarm devices, and pipes. The primary objective is to identify any indications of damage, corrosion, or obstructions that could impede the optimal functioning of the system. Moreover, these inspections must ascertain the sufficiency of water pressure and verify that the system has not been inadvertently deactivated.

Regular testing

Regular testing involves activating the system to confirm that it works as intended. This often includes triggering the control valves and alarms, and sometimes even the sprinkler heads in controlled conditions. Tests help to identify any potential issues early before they become serious problems.

In conclusion, the seemingly simple fire sprinkler systems in our buildings are, in reality, complex and meticulously designed pieces of safety equipment. They embody a combination of physics, engineering, and technology to detect and suppress fires swiftly and effectively. Understanding how these systems work demystifies their operation and helps us appreciate their critical role in safeguarding our lives and properties. It also underscores the importance of regular maintenance and testing to ensure their optimal functionality. Remember, the true power of a fire sprinkler system lies not just in its sophisticated design but in its readiness to respond when needed the most. Stay informed, stay safe, and ensure your fire sprinkler system is always up to the task.
